Keyboard Frame

A textured PC/ABS keyboard frame, 100 g per part, moulded one cavity per shot to hold flatness across a 280 × 350 mm part.

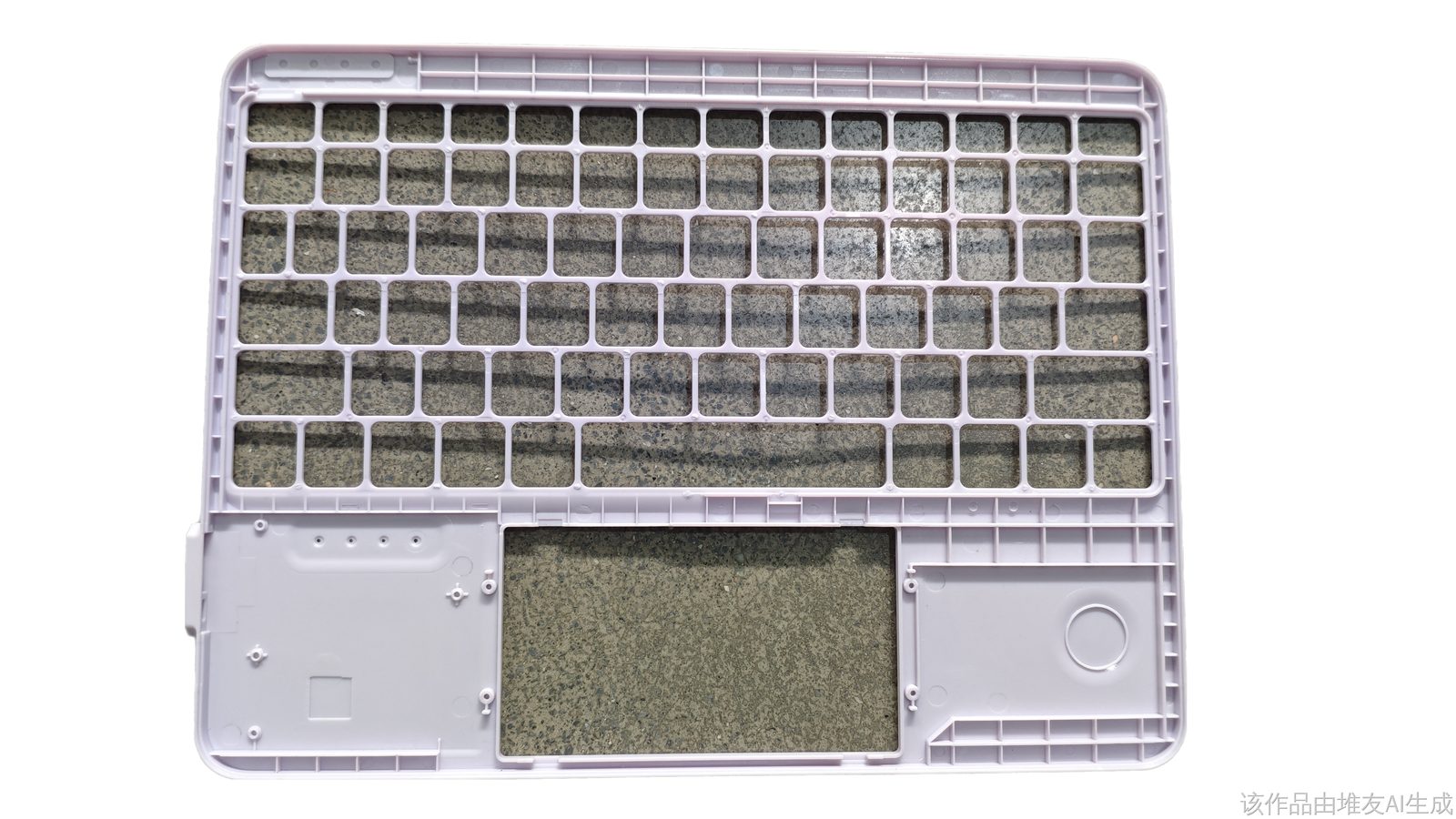

Keyboard frame, front view
Keyboard frame, detail of the textured surface

Specifications

CategoryInjection moulded part
IndustryConsumer electronics
MaterialPC/ABS
ColourBlack
Dimensions280 × 350 × 15 mm
Weight100 g
Surface finishTextured (mould texture)
Cavities1 × 1
ProcessInjection moulding
MOQ3,000 pcs
Sampling lead time7 days
Production lead time21 days

Lead times above are for repeat orders. New tooling projects are quoted per project, with the schedule confirmed in writing before the steel is cut. No prices are listed on this site: send us your drawing and we quote tooling and piece price separately.
